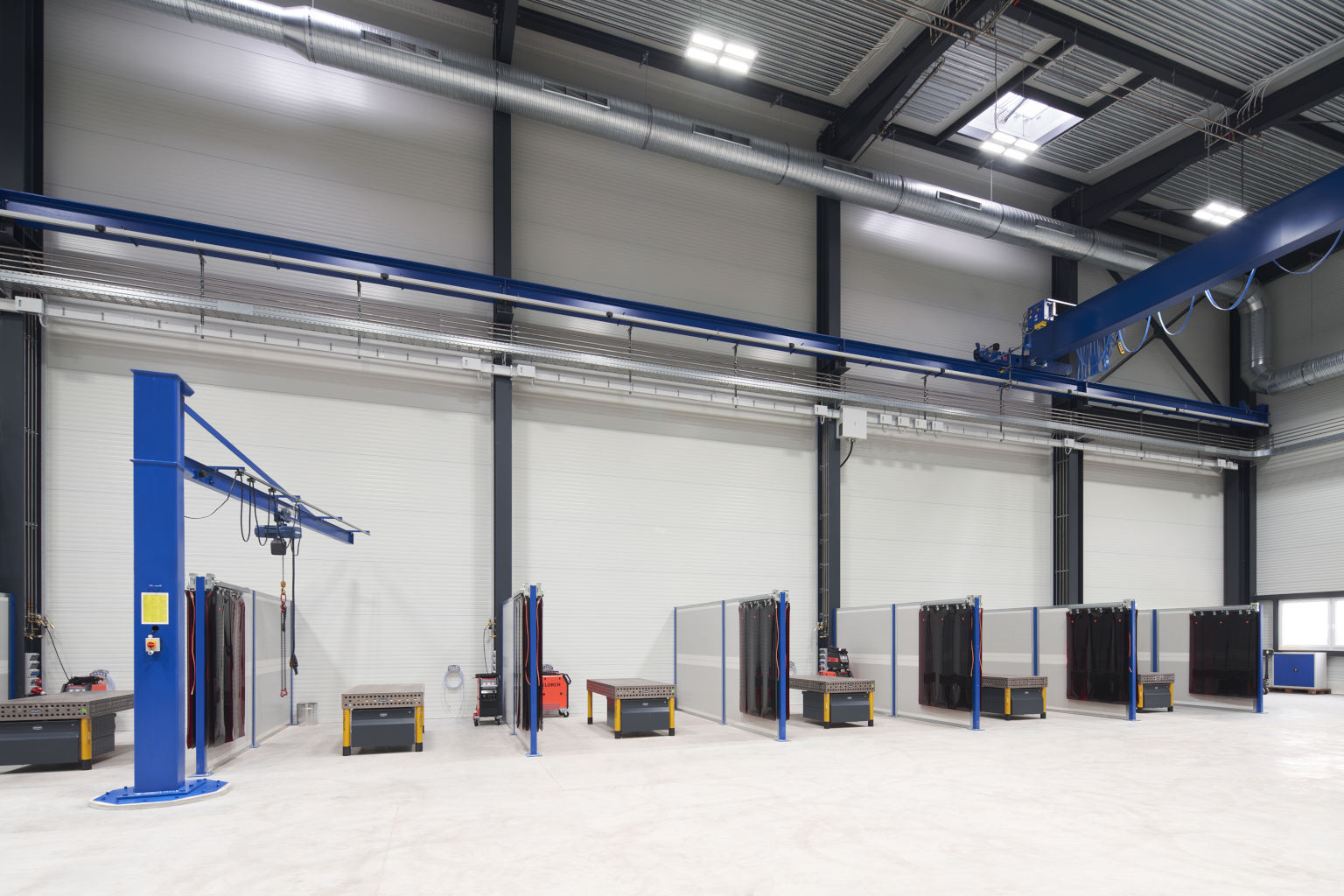

Telescopic swivel arms type AC

offer a space-saving, flexible and safe solution for welding workstations. Access to welding protection booths is made significantly easier, thereby increasing safety and productivity. Our modular welding protection systems can be combined with each other in a modular system.

Advantages at a glance

Technical features:

Function:
- Swivelling (2 x 90°) with locking in the centre position
- Telescopic with locking in end positions
Width:
- 1-wing: 1,540 mm to 3,540 mm
- 2-wings: 3,030 mm to 7,030 mm
Welding protection curtains:
- clear-flex welding protection strips are tested and approved in accordance with EN ISO 25980
- Matt or smooth on both sides
- Rounded edges, cadmium and silicone-free
- strips overlap: 50 mm, partial overlap (33%)
Technical features:
- Height adjustment for horizontal alignment
- XL solid material reinforcement in the upper area
- Steel rollers (Ø 45 mm), ball bearing mounted, oil and dust-tight encapsulation (maintenance-free)
- Swivelling axle with sliding guide bushes for smooth handling
- Strips suspension with metal pendulum shells
- Assemblies pre-assembled for easy installation
- Galvanised or powder-coated steel parts

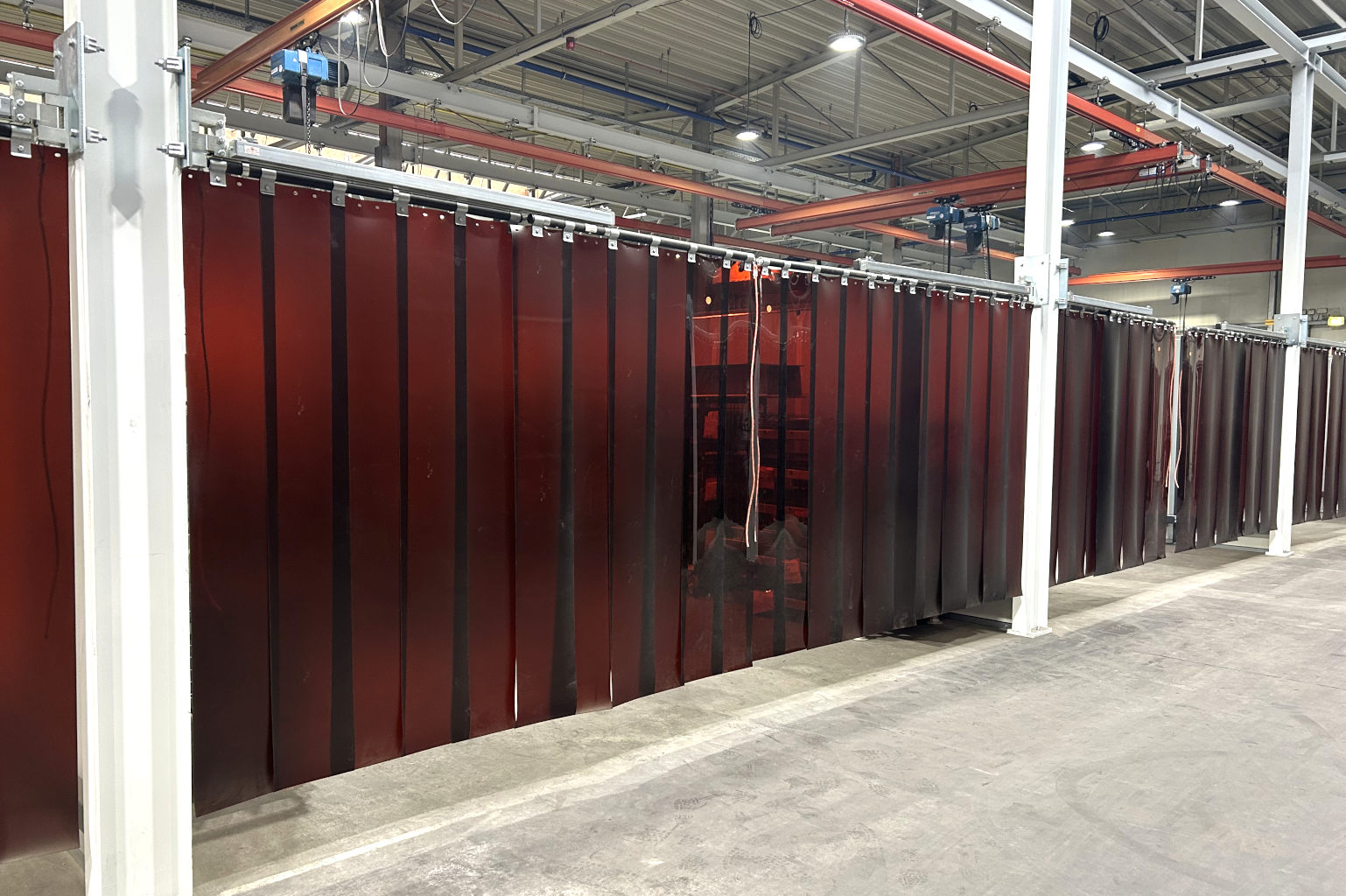

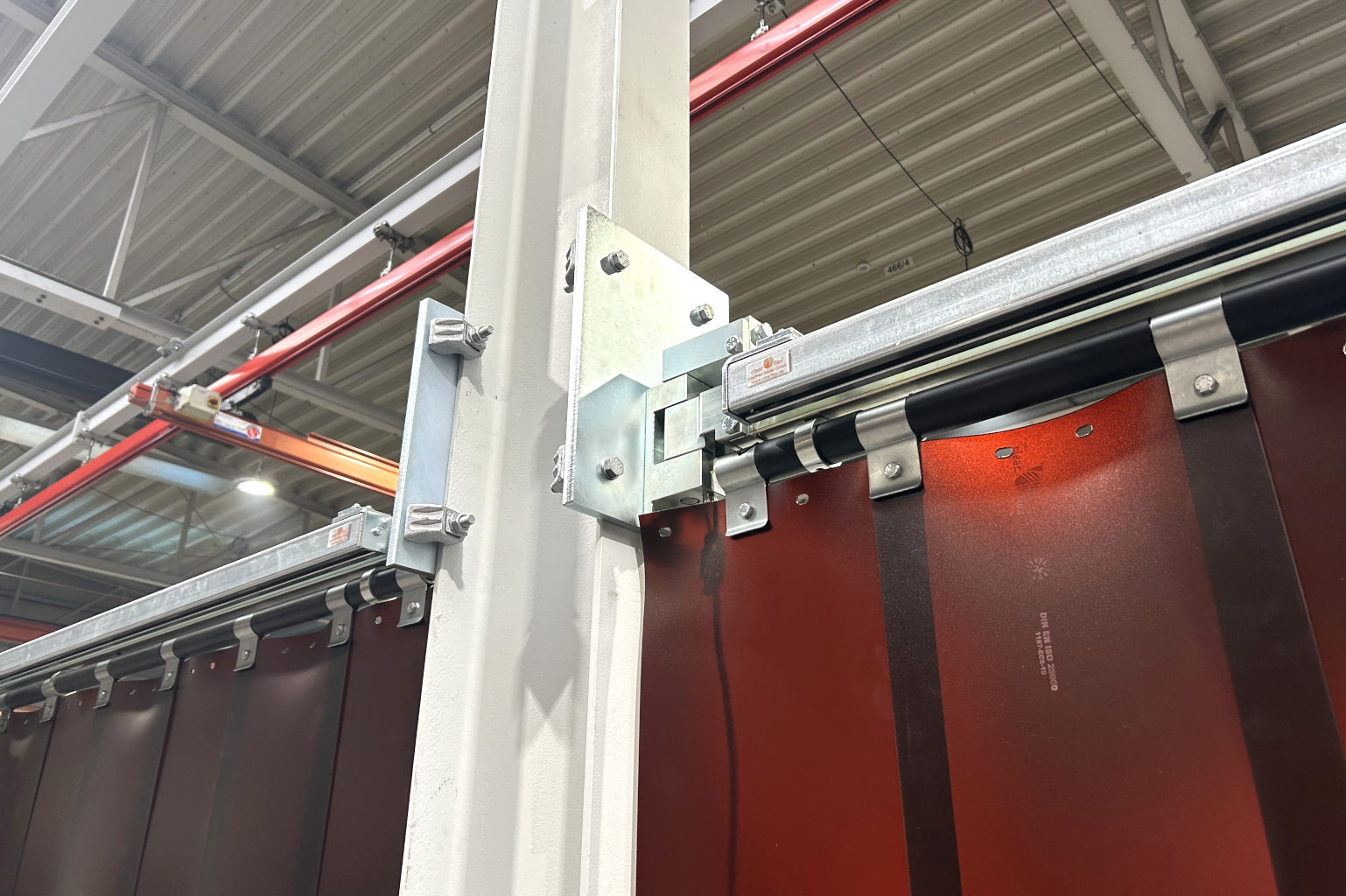

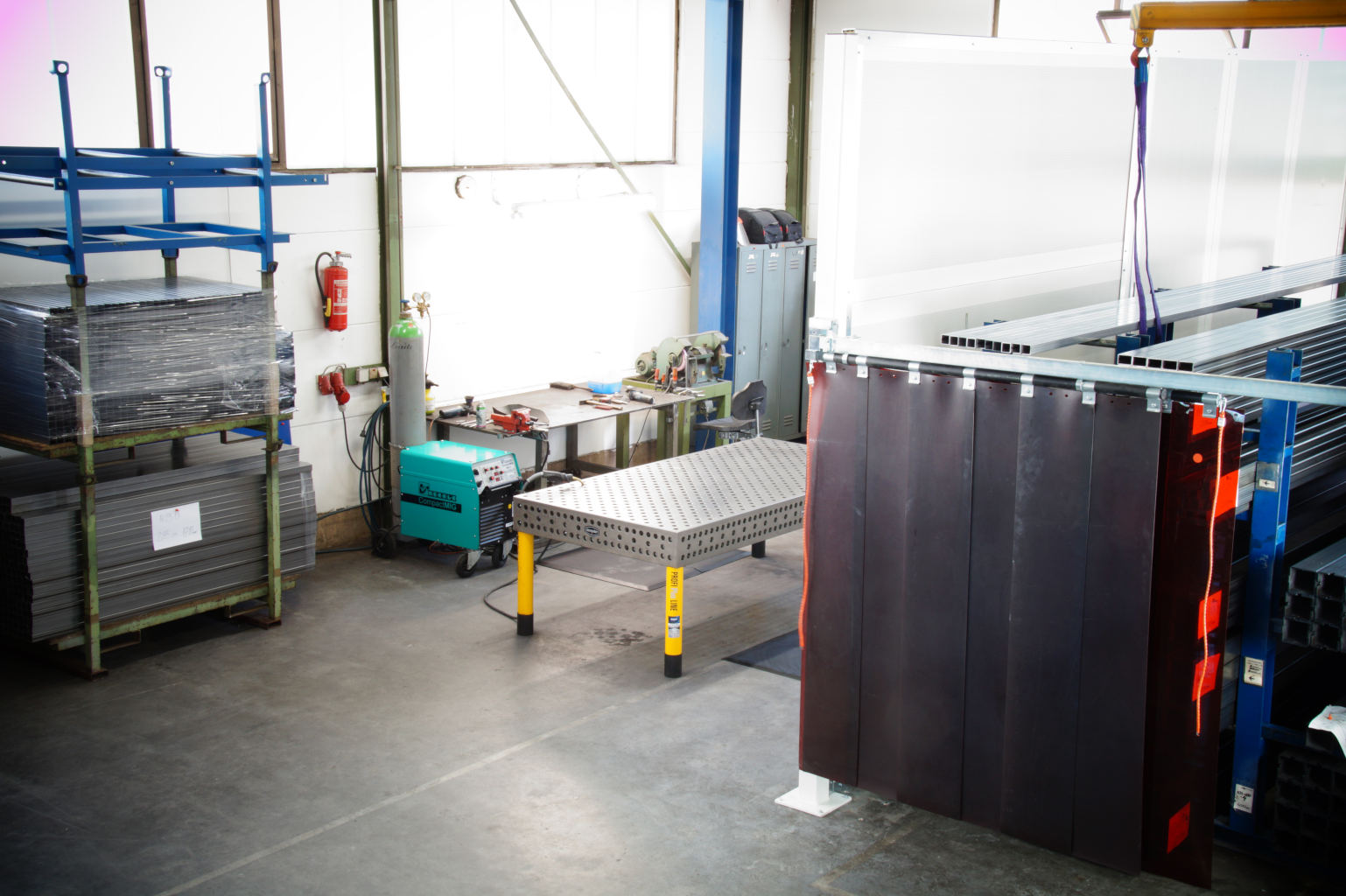

- Can be attached to support type AS 105 or wall-mounted with adapter plate

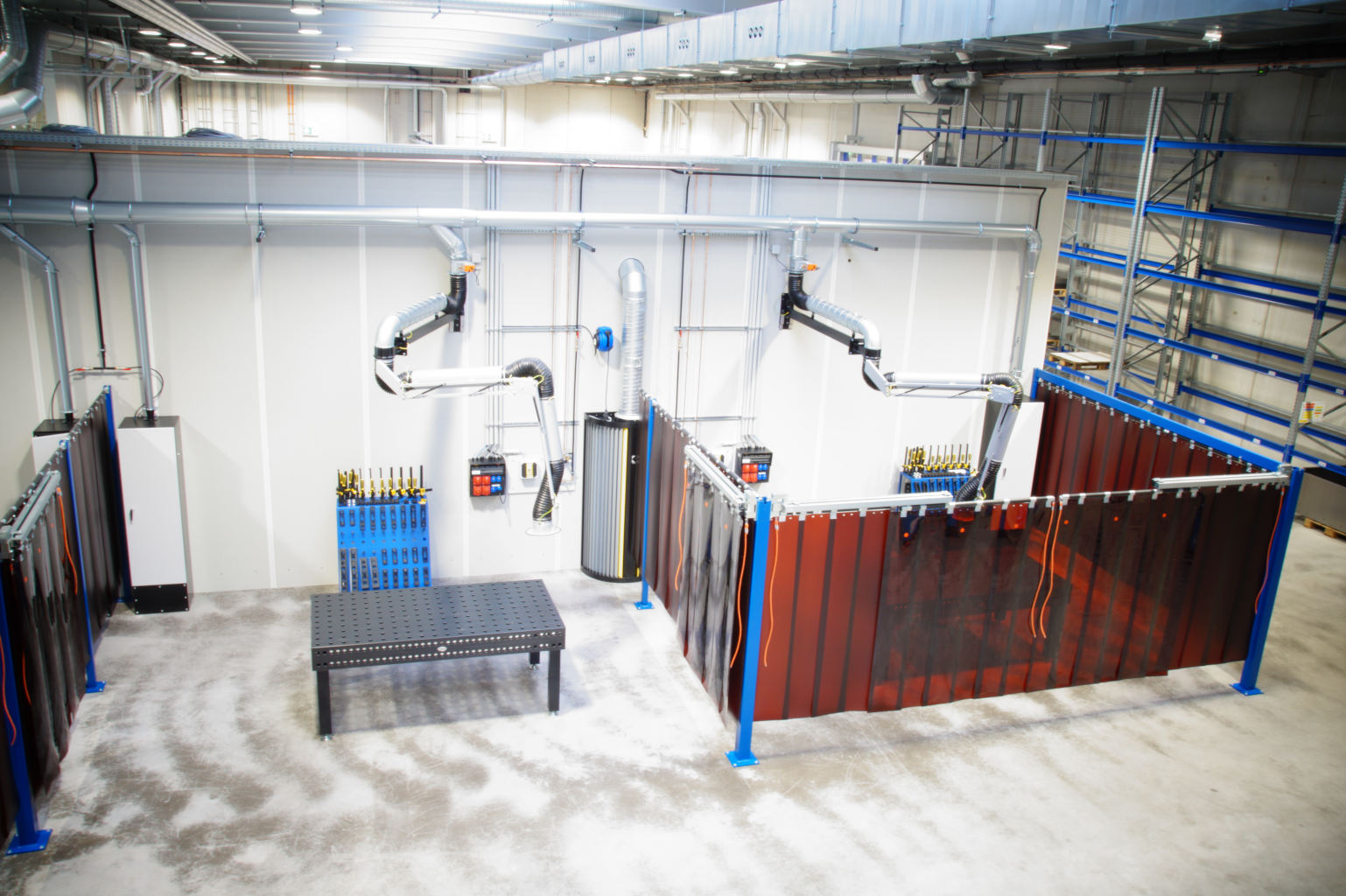

Improved safety:

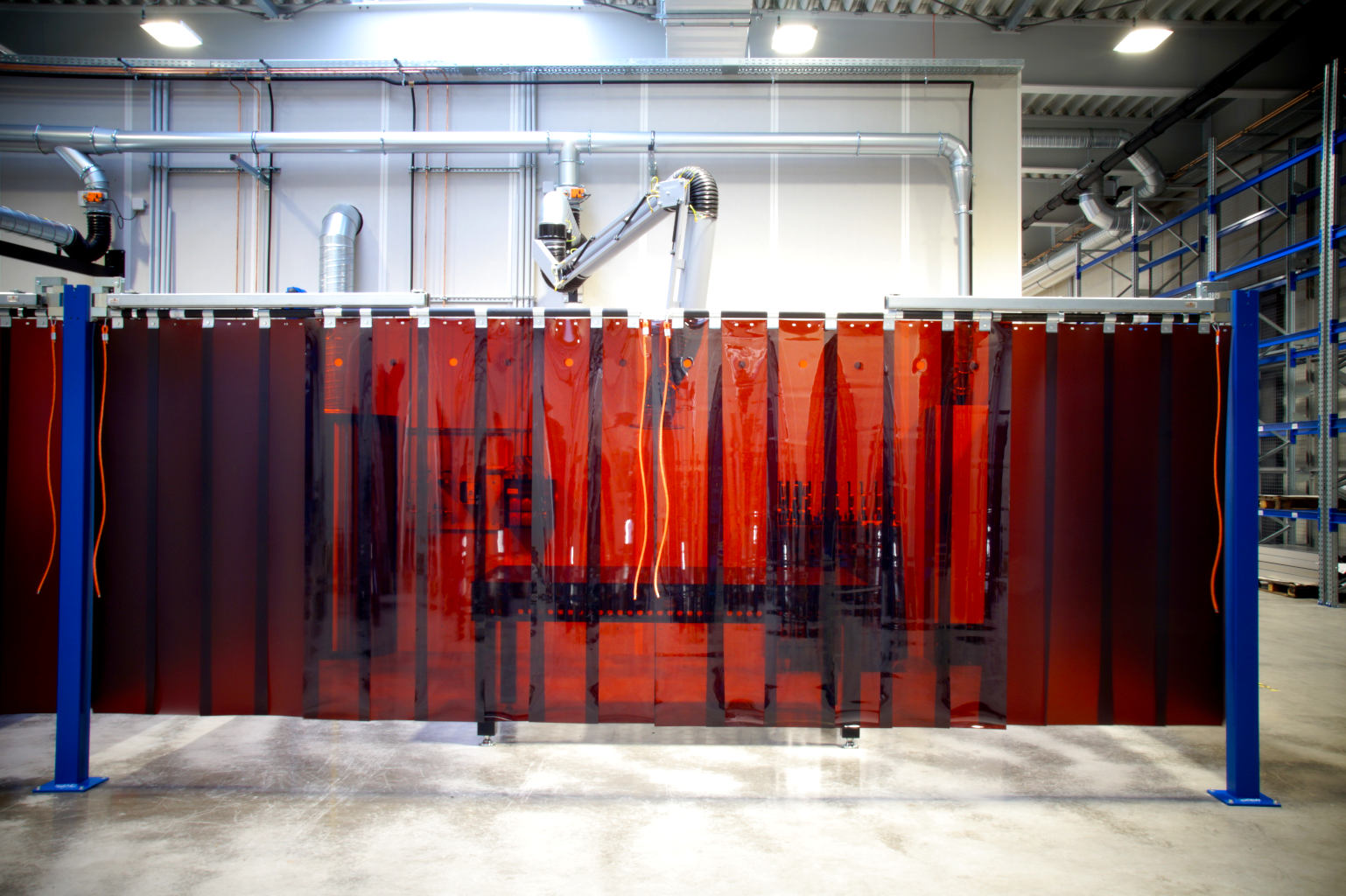

clear-flex strips welding protection curtains offer reliable protection against harmful radiation during arc welding processes and flying sparks. Harmful UV and infrared radiation is absorbed.
Reduced risk of accidents at work thanks to ground-level placement. No lifting of components over welding protection curtains.
Easy and safe loading and unloading of welding booths using an indoor crane or forklift truck.

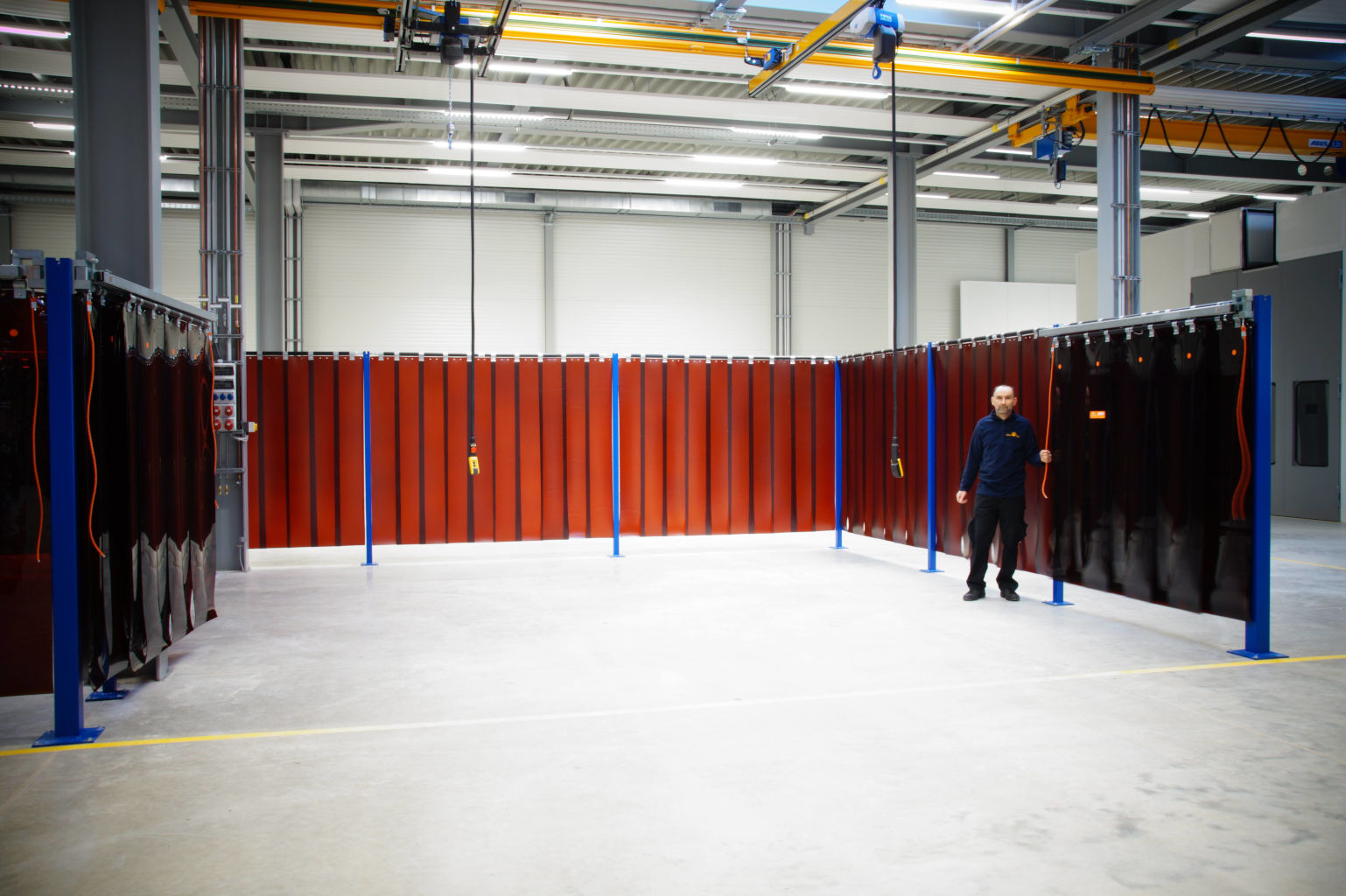

Optimised material flow:

Faster and easier loading of welding workstations.

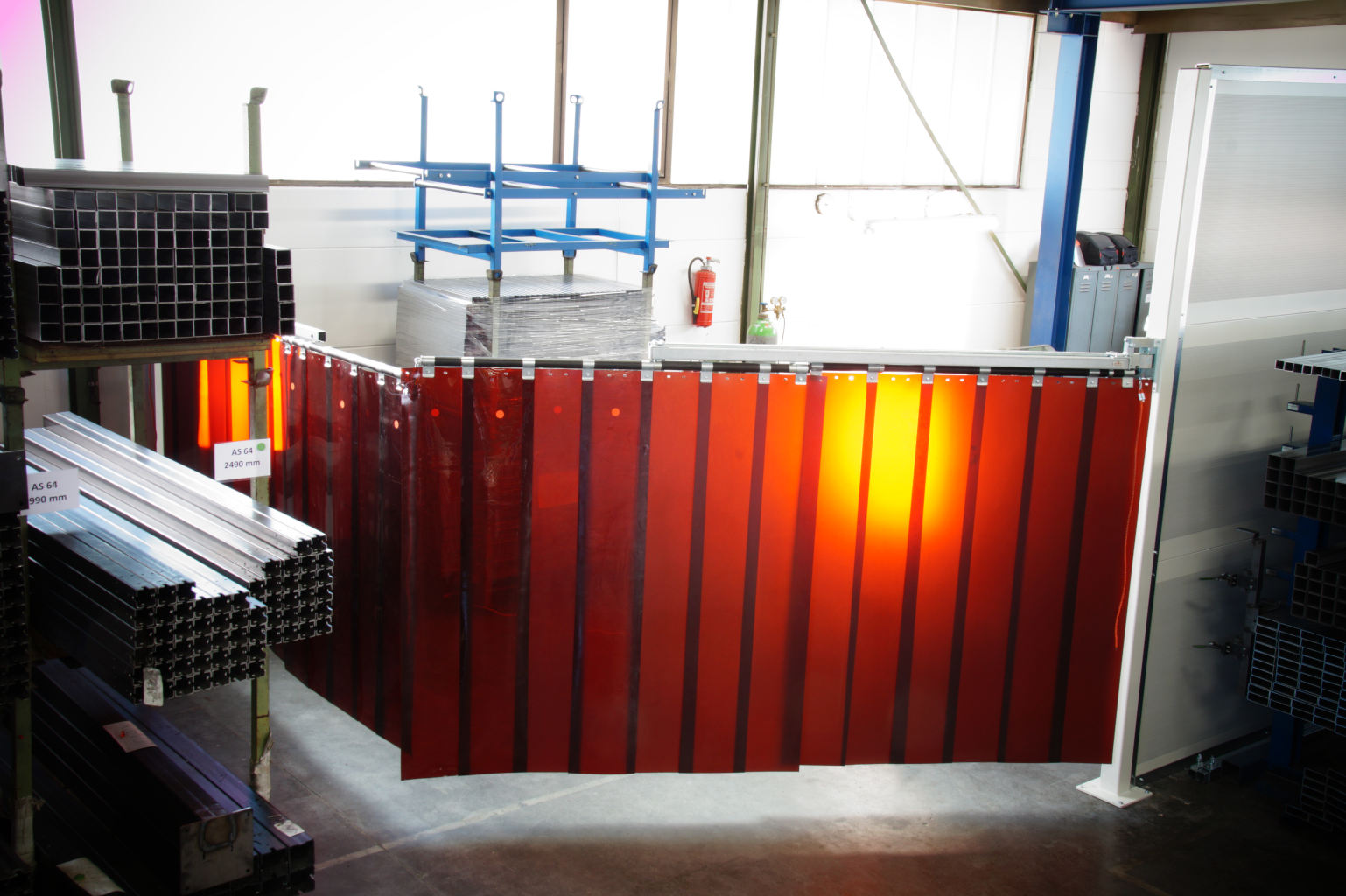

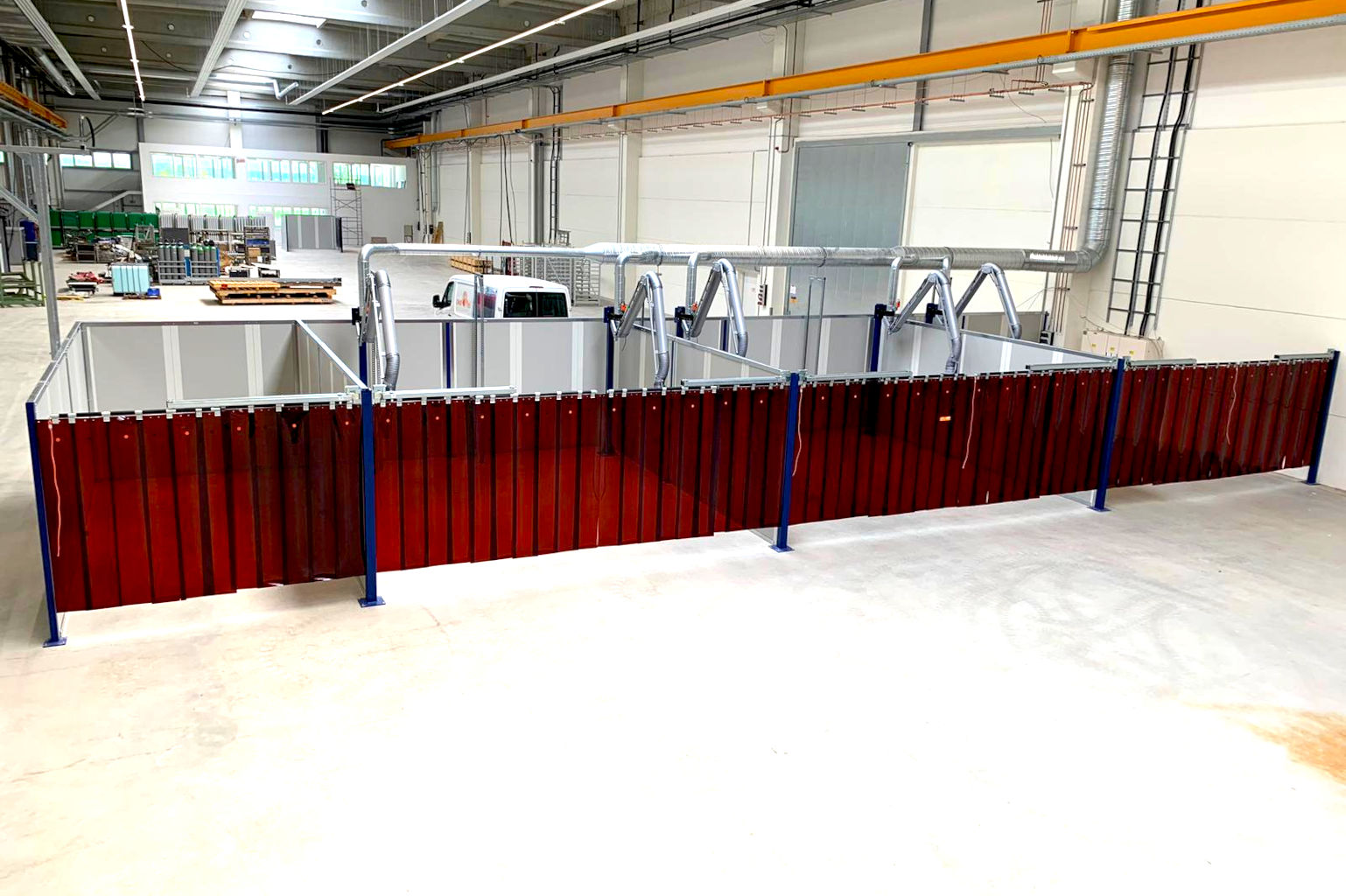

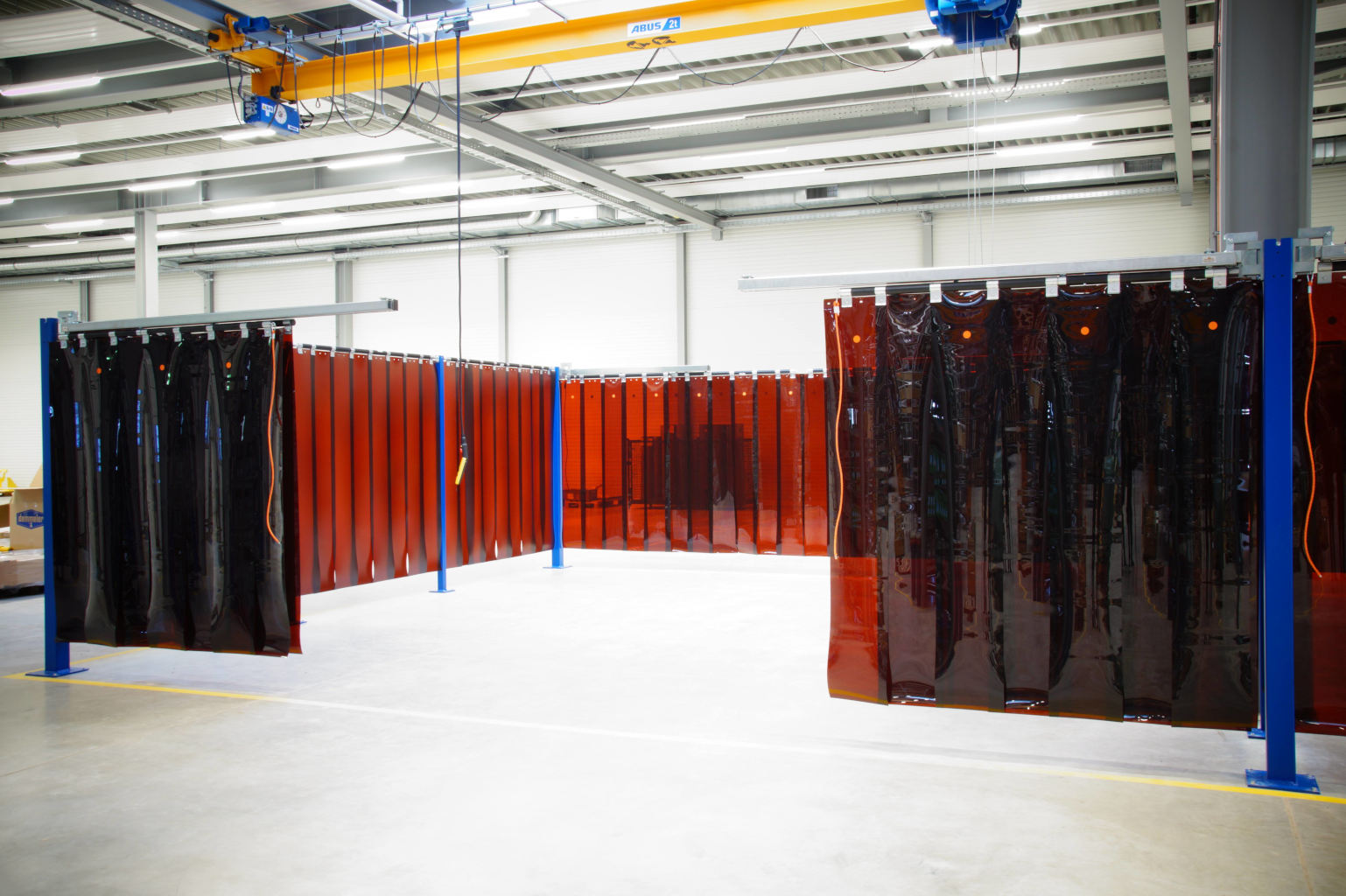

With the telescopic function, almost half of the swivel arm area can be opened. In many cases, this is sufficient for loading the welding booths. If the entire width of the booth is required, it can be conveniently swivelled open completely.
Swivelling arms with telescopic function are particularly suitable for welding booths in which heavy and large components are manufactured. The components can be handled much more easily.
No annoying cross struts at the booth entrances.

Flexibility:

Reduced swivelling radius of the curtains thanks to the telescopic function. No need to pull the welding curtains over welding tables or components.
Swivelling arms can be flexibly moved inwards or outwards.
Possibility of opening only a partial area or making the entire opening accessible.

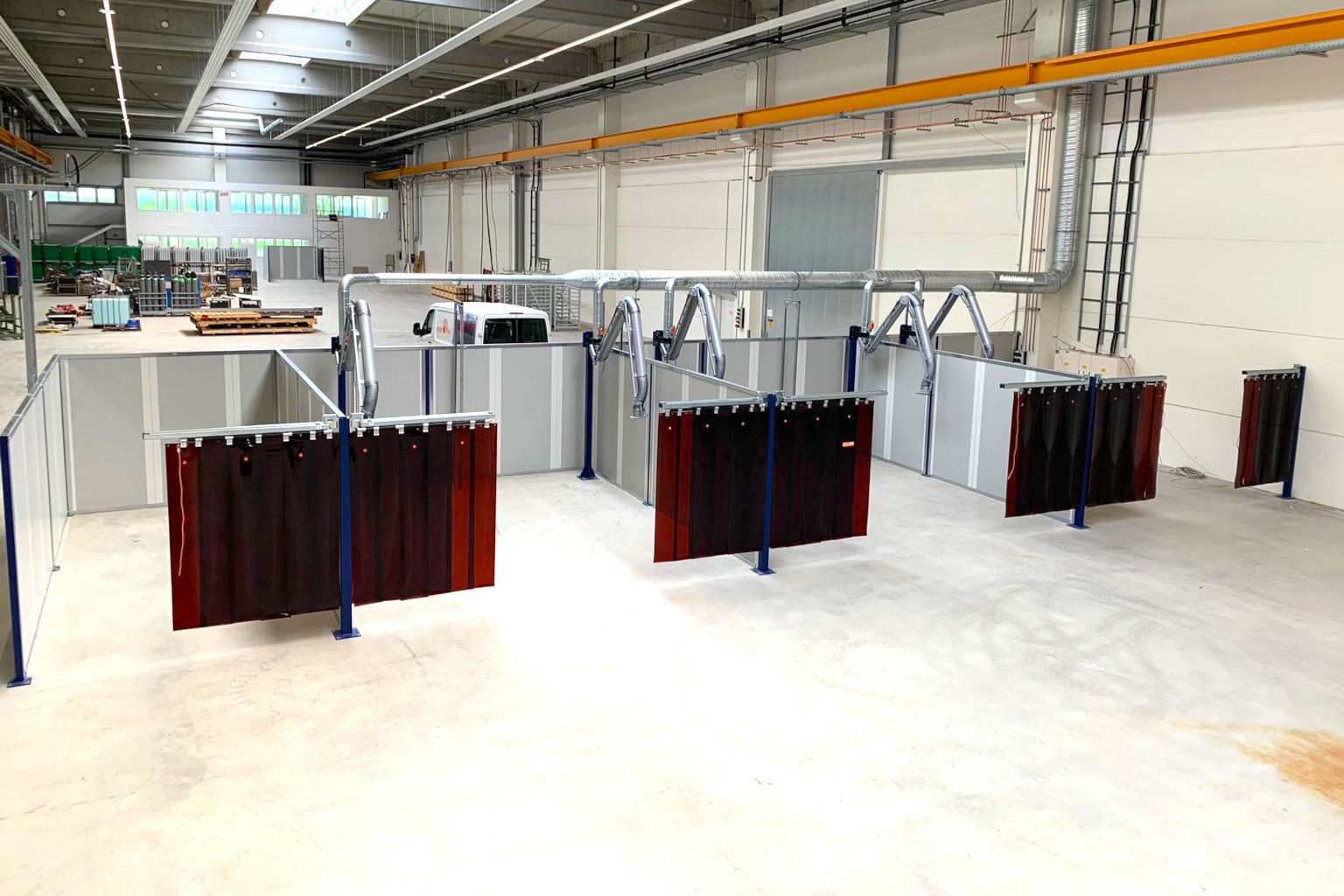

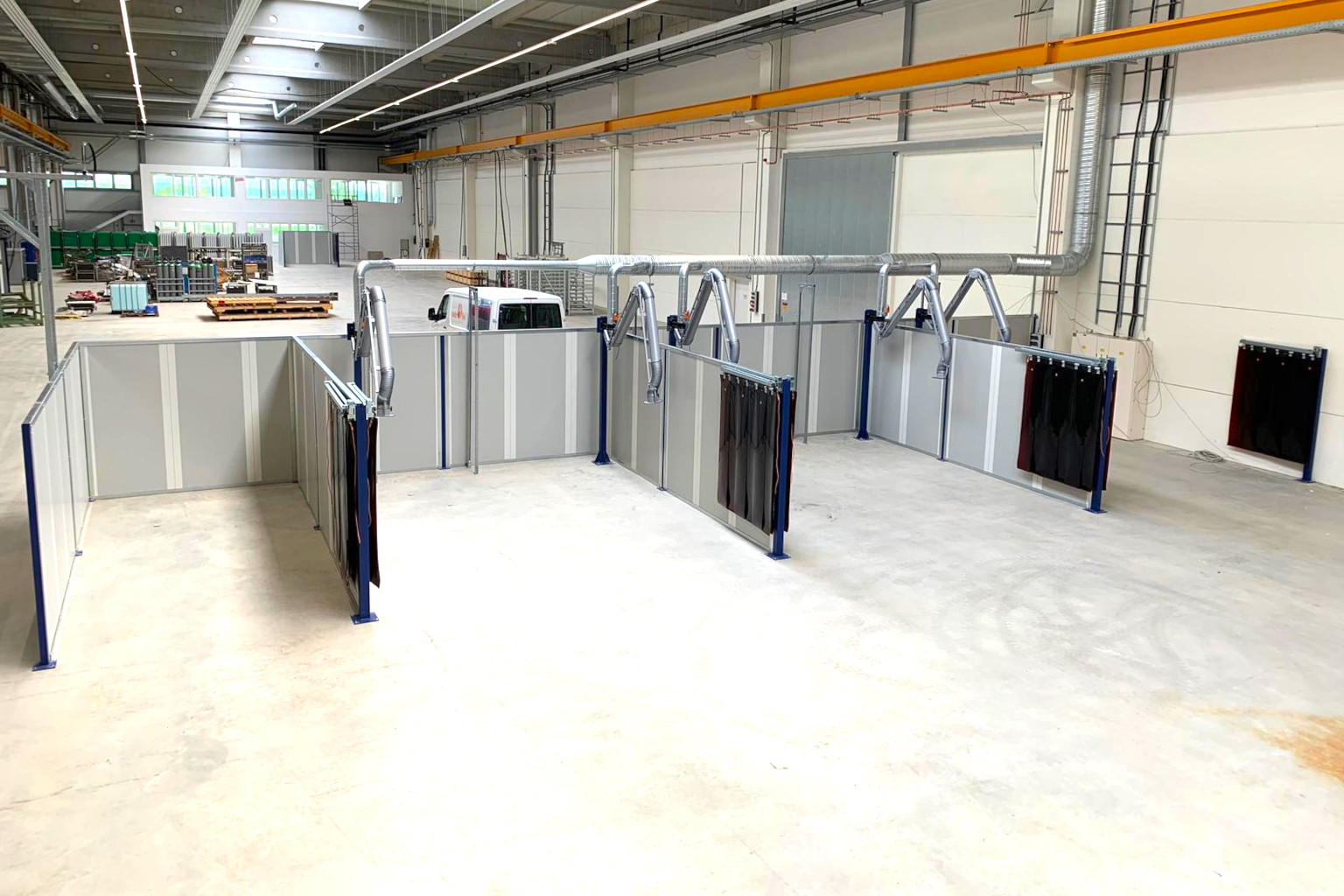

Welding booths can be enlarged by swivelling to the outside area

Protection against collision damage:

No cross struts minimise damage to curtains or running rails
Locking bolt of the swivel lock as predetermined breaking point in the event of collisions (replaceable)

Relevant information for a quotation:

Width:
- Details as layout, sketch or type designation from the table
Height (standard heights):
- 2,100 mm
- 2,200 mm
- 2,240 mm
- 2,500 mm
- 3,000 mm
- Special heights on request
Ground clearance:
- Individually able
- Standard for welding booths: 100 - 500 mm
strips type:
- SRT (red-brown-transparent)
- SRM (red-brown matt)
- SGM (dark green matt)
strips dimensions:
- 300 x 2 mm
- 300 x 3 mm
Fastening:
- Should the support structure also be offered?

1-wing

type (1-wing)	width (B) max.	fixed range (C)	telescope range (D)
AC-15-N-L	1540 mm	1070 mm	470 mm
AC-15-N-R	1540 mm	1070 mm	470 mm
AC-18-N-L	1790 mm	1070 mm	720 mm
AC-18-N-R	1790 mm	1070 mm	720 mm
AC-20-N-L	2040 mm	1320 mm	720 mm
AC-20-N-R	2040 mm	1320 mm	720 mm
AC-20-XL-L	2040 mm	1320 mm	720 mm
AC-20-XL-R	2040 mm	1320 mm	720 mm
AC-23-XL-L	2290 mm	1320 mm	970 mm
AC-23-XL-R	2290 mm	1320 mm	970 mm
AC-25-XL-L	2540 mm	1570 mm	970 mm
AC-25-XL-R	2540 mm	1570 mm	970 mm
AC-28-XL-L	2790 mm	1570 mm	1120 mm
AC-28-XL-R	2790 mm	1570 mm	1120 mm
AC-30-XL-L	3040 mm	1570 mm	1470 mm
AC-30-XL-R	3040 mm	1570 mm	1470 mm
AC-33-XL-L	3290 mm	1820 mm	1470 mm
AC-33-XL-R	3290 mm	1820 mm	1470 mm
AC-35-XL-L	3540 mm	1820 mm	1720 mm
AC-35-XL-R	3540 mm	1820 mm	1720 mm

2-wings

type (2-wings)	width (B) max.	fixed range (C)	telescope range (D)
AC-30-N-2	3030 mm	1070 + 1070 mm	890 mm
AC-33-N-2	3280 mm	1070 + 1070 mm	1140 mm
AC-35-N-2	3530 mm	1070 + 1070 mm	1390 mm
AC-38-N-2	3780 mm	1320 + 1070 mm	1390 mm
AC-40-N-2	4030 mm	1320 + 1320 mm	1390 mm
AC-40-XL-2	4030 mm	1320 + 1320 mm	1390 mm
AC-43-XL-2	4280 mm	1320 + 1320 mm	1640 mm
AC-45-XL-2	4530 mm	1320 + 1320 mm	1890 mm
AC-48-XL-2	4780 mm	1570 + 1320 mm	1890 mm
AC-50-XL-2	5030 mm	1570 + 1570 mm	1890 mm
AC-53-XL-2	5280 mm	1570 + 1570 mm	2140 mm
AC-55-XL-2	5530 mm	1570 + 1570 mm	2390 mm
AC-58-XL-2	5780 mm	1570 + 1570 mm	2640 mm
AC-60-XL-2	6030 mm	1570 + 1570 mm	2890 mm
AC-63-XL-2	6280 mm	1820 + 1570 mm	2890 mm
AC-65-XL-2	6530 mm	1820 + 1820 mm	2890 mm
AC-68-XL-2	6780 mm	1820 + 1820 mm	3140 mm
AC-70-XL-2	7030 mm	1820 + 1820 mm	3390 mm
